Company : AZIZ PIPE IRRIGATION SYSTEMS

AZIZ PIPE IRRIGATION SYSTEMS

Aziz Boru is a visionary company that was established with years of experience, has expert engineers, and produces agricultural solutions. It supports the solution process with a technological approach. It has brought a new perspective to rainy irrigation systems, which are quite effective and useful, by developing aluminum systems; has brought a durable, healthy and long-lasting irrigation system to the agricultural sector.

Vision

Aziz Boru has adopted the principle of staying dynamic with its continuous research and development studies. From product sales to distribution, development and marketing, it never compromises on the principle of customer satisfaction and does its job in the best way possible. It acts jointly with its employees with the logic of solution-oriented teamwork and is based on stability in production. In line with these principles, it provides perfect service with its constantly developing structure.

Mission

To contribute to the agricultural sector continuously and to develop new technologies with the principles and working style it has acquired. Our goal is to leave a healthier, recyclable and waste-free world and a clean environment for future generations. In line with this goal, it undertakes innovative, technology-following initiatives in the agricultural sector.

For More Details : https://azizboru.com/

UNDERGROUND AND ABOVE GROUND STEEL ALLOY ALUMINUM DRINKING WATER PIPES WITH LATCHES AND COUPLINGS SIZE Ø110 IRRIGATION SYSTEMS

		Ø 110 mm
Basınç Dayanımı	Compressive Strenghth	PN20	PN25	PN30
Boru Dış Çapı	Diameter of Pipes	110mm	110mm	110mm
Boru İç Çapı	Caliber of Pipes	106,8mm	106mm	105mm
Et Kalınlığı	Pipe Thickness	1,6mm	2mm	2,5mm
Ağırlık (kg/m)	Weightness	1,850kg	2,080kg	2,580kg
Boy	Lenghth	6M	6M	6M
Sürtünme Direnci	Frictional Resistance	0.007	0.007	0.007
Isı Dayanım Derecesi	Heat Resistance	90°C	90°C	90°C
Geri Dönüşüm Değeri (kg)	Value of Recycling	%.40	%.40	%.40
Debi (L/S) 2,8 - 3,5	Flow	90255 TON / 112818 Ton

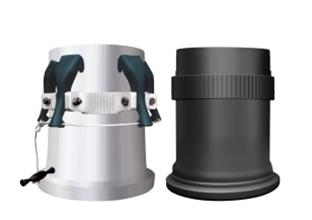

Boru Bağlantı Sistemi	System of Pipe Fitting	Mandal (Latched)
Boru Bağlantı Sistemi	System of Pipe Fitting	Muflu (Bellmouth)

UNDERGROUND AND ABOVE GROUND STEEL ALLOY ALUMINUM DRINKING WATER PIPES WITH LATCHES AND COUPLINGS SIZE Ø110 IRRIGATION SYSTEMS

ISTAVROZ

DISTRIBUTION

110X110

110X90

110X75

UNDERGROUND AND ABOVE GROUND STEEL ALLOY ALUMINUM DRINKING WATER PIPES WITH LATCHES AND COUPLINGS SIZE Ø125 IRRIGATION SYSTEMS

		Ø 125 mm
Basınç Dayanımı	Compressive Strenghth	PN20	PN25	PN30
Boru Dış Çapı	Diameter of Pipes	125mm	125mm	125mm
Boru İç Çapı	Caliber of Pipes	121,8mm	121mm	120mm
Et Kalınlığı	Pipe Thickness	1,6mm	2mm	2,5mm
Ağırlık (kg/m)	Weightness	2,010kg	2,330kg	2,830kg
Boy	Lenghth	6M	6M	6M
Sürtünme Direnci	Frictional Resistance	0.007	0.007	0.007
Isı Dayanım Derecesi	Heat Resistance	90°C	90°C	90°C
Geri Dönüşüm Değeri (kg)	Value of Recycling	%.40	%.40	%.40
Debi (L/S) 2,8 - 3,5	Flow	117388 TON / 146735 Ton
Boru Bağlantı Sistemi	System of Pipe Fitting	Mandal (Latched)
Boru Bağlantı Sistemi	System of Pipe Fitting	Muflu (Bellmouth)

UNDERGROUND AND ABOVE GROUND STEEL ALLOY ALUMINUM DRINKING WATER PIPES WITH LATCHES AND COUPLINGS SIZE Ø125 IRRIGATION SYSTEMS

ISTAVROZ

DISTRIBUTION

125X125

125X110

125X90

125X75

UNDERGROUND AND ABOVE GROUND STEEL ALLOY ALUMINUM DRINKING WATER PIPES WITH LATCHES AND COUPLINGS SIZE Ø144 IRRIGATION SYSTEMS

		Ø 144 mm
Basınç Dayanımı	Compressive Strenghth	PN20	PN25	PN30
Boru Dış Çapı	Diameter of Pipes	144mm	144mm	144mm
Boru İç Çapı	Caliber of Pipes	140,8mm	140mm	139mm
Et Kalınlığı	Pipe Thickness	1,6mm	2mm	2,5mm
Ağırlık (kg/m)	Weightness	2,333kg	2,833kg	3,500kg
Boy	Lenghth	6M	6M	6M
Sürtünme Direnci	Frictional Resistance	0.007	0.007	0.007
Isı Dayanım Derecesi	Heat Resistance	90°C	90°C	90°C
Geri Dönüşüm Değeri (kg)	Value of Recycling	%.40	%.40	%.40
Debi (L/S) 2,8 - 3,5	Flow	156868 TON / 196085 Ton
Boru Bağlantı Sistemi	System of Pipe Fitting	Mandal (Latched)
Boru Bağlantı Sistemi	System of Pipe Fitting	Muflu (Bellmouth)

UNDERGROUND AND ABOVE GROUND STEEL ALLOY ALUMINUM DRINKING WATER PIPES WITH LATCHES AND COUPLINGS SIZE Ø144 IRRIGATION SYSTEMS

144X144

144X125

144X110

144X90

144X75

UNDERGROUND AND ABOVE GROUND STEEL ALLOY ALUMINUM DRINKING WATER PIPES WITH LATCHES AND COUPLINGS SIZE Ø154 IRRIGATION SYSTEMS

		Ø 154 mm
Basınç Dayanımı	Compressive Strenghth	PN20	PN25	PN30
Boru Dış Çapı	Diameter of Pipes	154mm	154mm	154mm
Boru İç Çapı	Caliber of Pipes	150mm	149,6mm	148,6mm
Et Kalınlığı	Pipe Thickness	2mm	2,2mm	2,7mm
Ağırlık (kg/m)	Weightness	2,916kg	3,160kg	3,810kg
Boy	Lenghth	6M	6M	6M
Sürtünme Direnci	Frictional Resistance	0.007	0.007	0.007
Isı Dayanım Derecesi	Heat Resistance	90°C	90°C	90°C
Geri Dönüşüm Değeri (kg)	Value of Recycling	%.40	%.40	%.40
Debi (L/S) 2,8 - 3,5	Flow	178038 TON / 222547 Ton
Boru Bağlantı Sistemi	System of Pipe Fitting	Mandal (Latched)
Boru Bağlantı Sistemi	System of Pipe Fitting	Muflu (Bellmouth)

UNDERGROUND AND ABOVE GROUND STEEL ALLOY ALUMINUM DRINKING WATER PIPES WITH LATCHES AND COUPLINGS SIZE Ø154 IRRIGATION SYSTEMS

154X154

154x144

154X125

154X110

154X90

154X75

UNDERGROUND AND ABOVE GROUND STEEL ALLOY ALUMINUM DRINKING WATER PIPES WITH LATCHES AND COUPLINGS SIZE Ø164 IRRIGATION SYSTEMS

		Ø 164 mm
Basınç Dayanımı	Compressive Strenghth	PN20	PN25	PN30
Boru Dış Çapı	Diameter of Pipes	164mm	164mm	164mm
Boru İç Çapı	Caliber of Pipes	160mm	159mm	158mm
Et Kalınlığı	Pipe Thickness	2mm	2,5mm	3mm
Ağırlık (kg/m)	Weightness	3,083kg	3,600kg	4,410kg
Boy	Lenghth	6M	6M	6M
Sürtünme Direnci	Frictional Resistance	0.007	0.007	0.007
Isı Dayanım Derecesi	Heat Resistance	90°C	90°C	90°C
Geri Dönüşüm Değeri (kg)	Value of Recycling	%.40	%.40	%.40
Debi (L/S) 2,8 - 3,5	Flow	202567 TON / 253208 Ton
Boru Bağlantı Sistemi	System of Pipe Fitting	Mandal (Latched)
Boru Bağlantı Sistemi	System of Pipe Fitting	Muflu (Bellmouth)

UNDERGROUND AND ABOVE GROUND STEEL ALLOY ALUMINUM DRINKING WATER PIPES WITH LATCHES AND COUPLINGS SIZE Ø164 IRRIGATION SYSTEMS

164X164

164X154

164X144

164X125

164X110

164X90

164X75

UNDERGROUND AND ABOVE GROUND STEEL ALLOY ALUMINUM DRINKING WATER PIPES WITH LATCHES AND COUPLINGS SIZE Ø200 IRRIGATION SYSTEMS

		Ø 200 mm
Basınç Dayanımı	Compressive Strenghth	PN20	PN25	PN30
Boru Dış Çapı	Diameter of Pipes	200mm	200mm	200mm
Boru İç Çapı	Caliber of Pipes	195,4mm	195mm	194mm
Et Kalınlığı	Pipe Thickness	2,3mm	2,5mm	3mm
Ağırlık (kg/m)	Weightness	4,500kg	5,100kg	5,800kg
Boy	Lenghth	6M	6M	6M
Sürtünme Direnci	Frictional Resistance	0.007	0.007	0.007
Isı Dayanım Derecesi	Heat Resistance	90°C	90°C	90°C
Geri Dönüşüm Değeri (kg)	Value of Recycling	%.40	%.40	%.40
Debi (L/S) 2,8 - 3,5	Flow	3022119 TON / 377648 Ton
Boru Bağlantı Sistemi	System of Pipe Fitting	Mandal (Latched)
Boru Bağlantı Sistemi	System of Pipe Fitting	Muflu (Bellmouth)

UNDERGROUND AND ABOVE GROUND STEEL ALLOY ALUMINUM DRINKING WATER PIPES WITH LATCHES AND COUPLINGS SIZE Ø225 IRRIGATION SYSTEMS

		Ø 225 mm
Basınç Dayanımı	Compressive Strenghth	PN20	PN25	PN30
Boru Dış Çapı	Diameter of Pipes	225mm	225mm	225mm
Boru İç Çapı	Caliber of Pipes	219,5mm	218,5mm	217mm
Et Kalınlığı	Pipe Thickness	2,75mm	3,25mm	4mm
Ağırlık (kg/m)	Weightness	5,830kg	6,660kg	8,080kg
Boy	Lenghth	6M	6M	6M
Sürtünme Direnci	Frictional Resistance	0.007	0.007	0.007
Isı Dayanım Derecesi	Heat Resistance	90°C	90°C	90°C
Geri Dönüşüm Değeri (kg)	Value of Recycling	%.40	%.40	%.40
Debi (L/S) 2,8 - 3,5	Flow	381240 TON / 476550 Ton
Boru Bağlantı Sistemi	System of Pipe Fitting	Mandal (Latched)
Boru Bağlantı Sistemi	System of Pipe Fitting	Muflu (Bellmouth)

UNDERGROUND AND ABOVE GROUND STEEL ALLOY ALUMINUM DRINKING WATER PIPES WITH LATCHES AND COUPLINGS SIZE Ø250 IRRIGATION SYSTEMS

		Ø 250 mm
Basınç Dayanımı	Compressive Strenghth	PN35	PN40	PN45
Boru Dış Çapı	Diameter of Pipes	250mm	250mm	250mm
Boru İç Çapı	Caliber of Pipes	244mm	243mm	242mm
Et Kalınlığı	Pipe Thickness	3mm	3,5mm	3,5mm
Ağırlık (kg/m)	Weightness	7,035kg	8,070kg	9,060kg
Boy	Lenghth	6M	6M	6M
Sürtünme Direnci	Frictional Resistance	0.007	0.007	0.007
Isı Dayanım Derecesi	Heat Resistance	90°C	90°C	90°C
Geri Dönüşüm Değeri (kg)	Value of Recycling	%.40	%.40	%.40
Debi (L/S) 2,8 - 3,5	Flow	471096 TON / 588870 Ton
Boru Bağlantı Sistemi	System of Pipe Fitting	Mandal (Latched)
Boru Bağlantı Sistemi	System of Pipe Fitting	Muflu (Bellmouth)

UNDERGROUND AND ABOVE GROUND STEEL ALLOY ALUMINUM DRINKING WATER PIPES WITH LATCHES AND COUPLINGS SIZE Ø275 IRRIGATION SYSTEMS

		Ø 275 mm
Basınç Dayanımı	Compressive Strenghth	PN35	PN40	PN45
Boru Dış Çapı	Diameter of Pipes	275mm	275mm	275mm
Boru İç Çapı	Caliber of Pipes	268mm	267mm	266mm
Et Kalınlığı	Pipe Thickness	3,5mm	4mm	4,5mm
Ağırlık (kg/m)	Weightness	8.700kg	9.830kg	11.300kg
Boy	Lenghth	6M	6M	6M
Sürtünme Direnci	Frictional Resistance	0.007	0.007	0.007
Isı Dayanım Derecesi	Heat Resistance	90°C	90°C	90°C
Geri Dönüşüm Değeri (kg)	Value of Recycling	%.40	%.40	%.40
Debi (L/S) 2,8 - 3,5	Flow	568328 TON / 710410 Ton
Boru Bağlantı Sistemi	System of Pipe Fitting	Mandal (Latched)
Boru Bağlantı Sistemi	System of Pipe Fitting	Muflu (Bellmouth)

UNDERGROUND AND ABOVE GROUND STEEL ALLOY ALUMINUM DRINKING WATER PIPES WITH LATCHES AND COUPLINGS SIZE Ø300 IRRIGATION SYSTEMS

		Ø 300 mm
Basınç Dayanımı	Compressive Strenghth	PN35	PN40	PN45
Boru Dış Çapı	Diameter of Pipes	300mm	300mm	300mm
Boru İç Çapı	Caliber of Pipes	292mm	290mm	288mm
Et Kalınlığı	Pipe Thickness	4mm	5mm	6mm
Ağırlık (kg/m)	Weightness	11.660kg	13.500kg	16.045kg
Boy	Lenghth	6M	6M	6M
Sürtünme Direnci	Frictional Resistance	0.007	0.007	0.007
Isı Dayanım Derecesi	Heat Resistance	90°C	90°C	90°C
Geri Dönüşüm Değeri (kg)	Value of Recycling	%.40	%.40	%.40
Debi (L/S) 2,8 - 3,5	Flow	674676 TON / 843345 Ton
Boru Bağlantı Sistemi	System of Pipe Fitting	Mandal (Latched)
Boru Bağlantı Sistemi	System of Pipe Fitting	Muflu (Bellmouth)

UNDERGROUND AND ABOVE GROUND STEEL ALLOY ALUMINUM DRINKING WATER PIPES WITH LATCHES AND COUPLINGS SIZE Ø300 IRRIGATION SYSTEMS

300X300

300x275

300X250

300X225

300x200

300X164

300X154

300x144

300X125

300X110

300X90

300X75

UNDERGROUND AND ABOVE GROUND STEEL ALLOY ALUMINUM DRINKING WATER PIPES WITH LATCHES AND COUPLINGS SIZE Ø75 IRRIGATION SYSTEMS

		Ø 75 mm
Basınç Dayanımı	Compressive Strenghth	PN20	PN25	PN30
Boru Dış Çapı	Diameter of Pipes	75mm	75mm	75mm
Boru İç Çapı	Caliber of Pipes	72mm	71,4mm	70,6mm
Et Kalınlığı	Pipe Thickness	1,5mm	1,8mm	2,2mm
Ağırlık (kg/m)	Weightness	1,250kg	1,330kg	1,580kg
Boy	Lenghth	6M	6M	6M
Sürtünme Direnci	Frictional Resistance	0.007	0.007	0.007
Isı Dayanım Derecesi	Heat Resistance	90°C	90°C	90°C
Geri Dönüşüm Değeri (kg)	Value of Recycling	%.40	%.40	%.40
Debi (L/S) 2,8 - 3,5	Flow	41019 TON / 51274 Ton
Boru Bağlantı Sistemi	System of Pipe Fitting	Mandal (Latched)
Boru Bağlantı Sistemi	System of Pipe Fitting	Muflu (Bellmouth)

UNDERGROUND AND ABOVE GROUND STEEL ALLOY ALUMINUM DRINKING WATER PIPES WITH LATCHES AND COUPLINGS SIZE Ø75 IRRIGATION SYSTEMS

ISTAVROZ

DISTRIBUTION

75X75

UNDERGROUND AND ABOVE GROUND STEEL ALLOY ALUMINUM DRINKING WATER PIPES WITH LATCHES AND COUPLINGS SIZE Ø90 IRRIGATION SYSTEMS

		Ø 90 mm
Basınç Dayanımı	Compressive Strenghth	PN20	PN25	PN30
Boru Dış Çapı	Diameter of Pipes	90mm	90mm	90mm
Boru İç Çapı	Caliber of Pipes	87mm	86,4mm	85,6mm
Et Kalınlığı	Pipe Thickness	1,5mm	1,8mm	2,2mm
Ağırlık (kg/m)	Weightness	1,466kg	1,980kg	2,010kg
Boy	Lenghth	6M	6M	6M
Sürtünme Direnci	Frictional Resistance	0.007	0.007	0.007
Isı Dayanım Derecesi	Heat Resistance	90°C	90°C	90°C
Geri Dönüşüm Değeri (kg)	Value of Recycling	%.40	%.40	%.40
Debi (L/S) 2,8 - 3,5	Flow	59891 TON / 74863 Ton
Boru Bağlantı Sistemi	System of Pipe Fitting	Mandal (Latched)
Boru Bağlantı Sistemi	System of Pipe Fitting	Muflu (Bellmouth)

UNDERGROUND AND ABOVE GROUND STEEL ALLOY ALUMINUM DRINKING WATER PIPES WITH LATCHES AND COUPLINGS SIZE Ø90 IRRIGATION SYSTEMS

ISTAVROZ

DISTRIBUTION

90X90

90X75

UNDERGROUND AND ABOVE GROUND STEEL ALLOY ALUMINUM DRINKING WATER PIPES WITH LATCHES AND COUPLINGS SIZE Ø275/Ø250/Ø225/Ø200 IRRIGATION SYSTEMS
